OMIP Reviews | OMIP-025 An Integrated ICS Panel for Functional T Cells, TFH, and NK Cell Analysis

Release date: 2026-06-23 View count: 23

Challenges in Vaccine Immunology Research

In vaccine development, evaluating protective efficacy requires more than just measuring serum antibody titers. A comprehensive understanding of T cell, follicular helper T (TFH) cell, and natural killer (NK) cell functionality is essential. In practical research, limited sample availability—particularly from pediatric participants or volunteer PBMCs—makes it challenging to obtain a complete immune profile in a single experiment using conventional methods.

Limitations of Traditional Methods

Conventional ICS panels typically assess only a subset of cellular functions or a single cell type, providing limited insight into T cell functionality, memory differentiation, TFH phenotype, and NK cell responses simultaneously. This necessitates multiple experiments to measure distinct readouts, increasing both sample consumption and operational complexity, while failing to capture the full breadth of the immune response.

Technical Innovation Enables Multidimensional Immune Profiling

OMIP-025 enables simultaneous assessment of T cell functionality, memory differentiation, TFH phenotype, and NK cell responses within a single experiment. Incorporation of sensitive markers such as CD154 enhances detection of antigen-specific CD4 T cells, yielding more complete and reliable functional data. Optimized fluorochrome combinations and antibody selection ensure high-quality multidimensional data, even when sample volumes are limited.

OMIP-025 provides a highly integrated platform for vaccine research and immunological studies. By simultaneously profiling T cell functionality, memory differentiation, TFH phenotype, and NK cell activity, it supports comprehensive evaluation of antigen-specific immune responses—including magnitude, breadth, and quality—and offers a reliable reference for multidimensional immune monitoring and vaccine efficacy assessment.

1. OMIP-025 Panel

Target	Fluorochrome	Function	abinScience Recommendation
Live/Dead	AViD	Exclued dead cells, Monocytes	—
CD14	BV510	Exclued dead cells, Monocytes	View CD14 antibodies
CD3	BV570	Lineage T cells	View CD3 antibodies
CD4	BUV395		View CD4 antibodies
CD8	BV711		View CD8 antibodies
CD56	BV650	NK cells and NK T-like cells	View CD56 antibodies
CD45RA	APC H7	Memory/differentiation	—
CCR7	BV785	Memory/differentiation	View CCR7 antibodies
CXCR5	PE-eFluor 610	Follicular helper T (Tfh) cells	View CXCR5 antibodies
PD-1	PE-Cy7	Follicular helper T (Tfh) cells	View PD-1 antibodies
INF-γ	V450	Function	View IFN-γ antibodies
IL-2	PE		View IL-2 antibodies
INF-α	FITC		View TNF-α antibodies
IL-4	PerCP-Cy5.5		View IL-4 antibodies
IL-21	APC		View IL-21 antibodies
CD154	BV605		View CD154 antibodies

2. Gating Logic

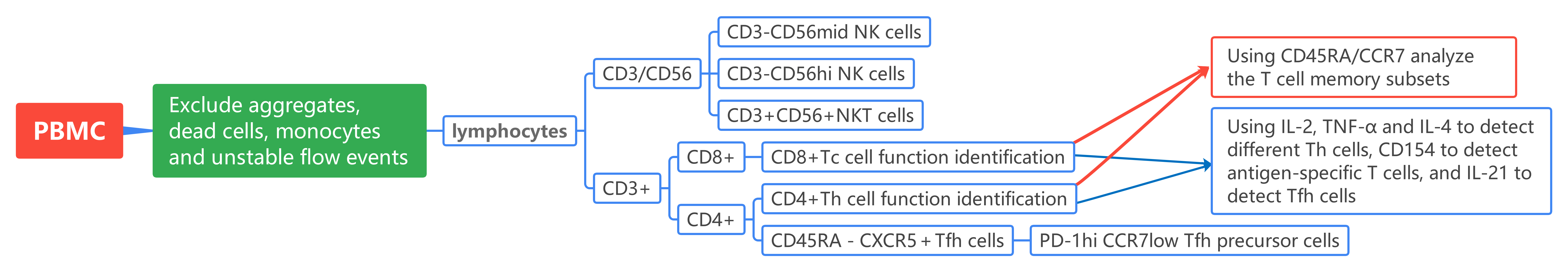

Figure 1. Overview of OMIP-025 Gating Strategy

Live cells selection:

Exclude aggregates, unstable flow events, dead cells, and monocytes.

NK cells analysis:

Different NK subsets identified by CD3/CD56.

TFH cells analysis:

CD45RA, CXCR5, CCR7, and PD-1 were used to profile circulating TFH-like CD4 T cells.

CD4+/CD8+ T cells phenotyping:

IFN-γ, IL-2, TNF-α, IL-4, CD154, CD45RA, CXCR5 were used to characterize functional and differentiation states.

3. Experimental Results

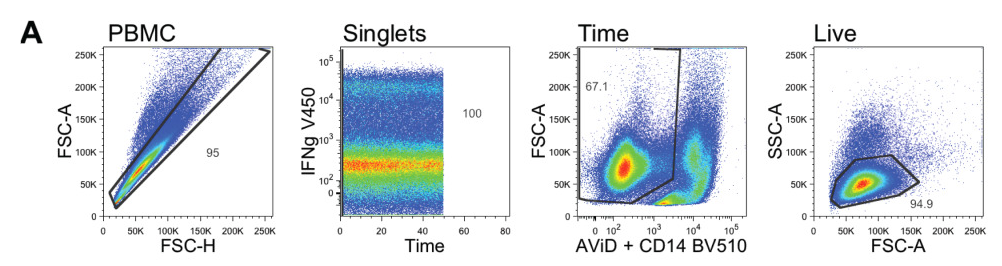

1). Aggregates excluded using FSC-A/H; unstable flow events removed via Time gate; dead cells and monocytes excluded.

Result 1

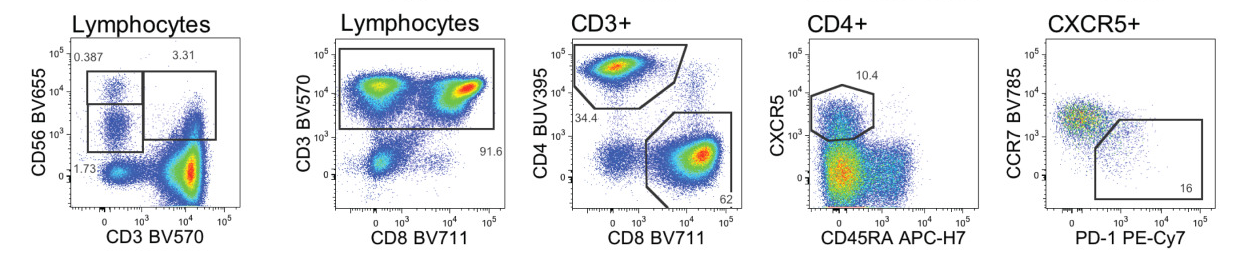

2). NK cell subsets analyzed by CD3/CD56; CD4/CD8 gating defines helper and cytotoxic T cells; TFH-like cells identified within CD4 population via CD45RA/CXCR5/CCR7/PD-1.

Result 2

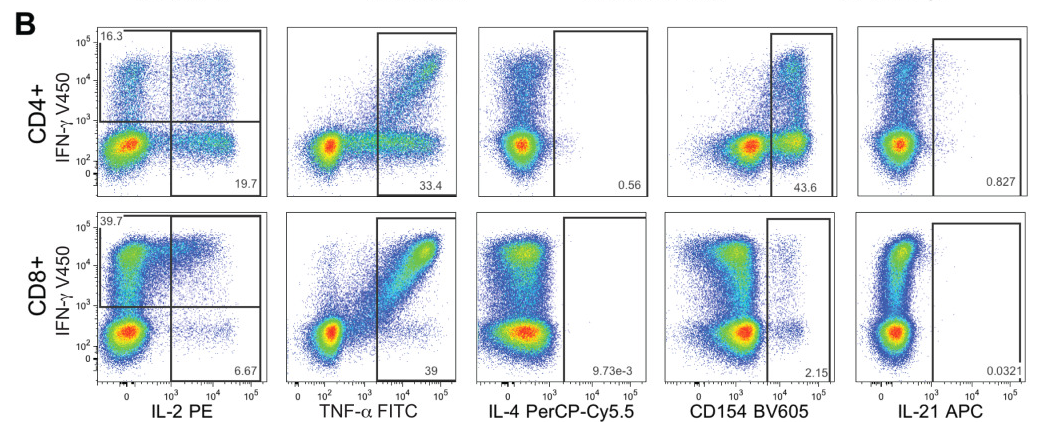

3). Functional responses of Th and Tc cells evaluated using IFN-γ, IL-2, TNF-α, IL-4, CD154 post antigen stimulation.

Result 3

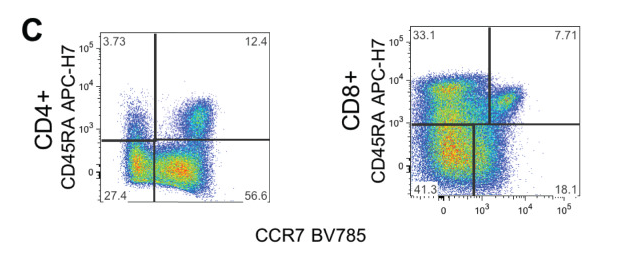

4). Memory differentiation of T cells assessed through CD45RA/CXCR5 profiling.

Result 4

4. Panel Interpretation

4.1 Integrated T cell functionality, differentiation, and TFH profiling

OMIP-025 combines multiple layers of T cell immunological information in a single ICS panel. Functional cytokine responses (IFN-γ, IL-2, TNF-α, IL-4, IL-21) are measured alongside memory differentiation markers CCR7 and CD45RA. CXCR5 and PD-1 allow identification of circulating TFH-like CD4 T cells, providing simultaneous insight into functionality, differentiation, and TFH-associated immunity.

4.2 Enhanced detection of antigen-specific CD4 T cells via CD154

Traditional ICS relies on cytokine expression to identify antigen-specific responses, often missing low-frequency events. OMIP-025 incorporates CD154 (CD40L) as a sensitive marker, improving detection of low-frequency antigen-specific CD4 T cells when combined with cytokine analysis.

4.3 Inclusion of NK cells and cross-panel validation

CD56 enables NK cell identification and functional analysis within the same experimental framework. Using matched samples with OMIP-014, high concordance in core T cell functionality measurements was confirmed, demonstrating that marker expansion does not compromise panel performance.

5. Applications

Vaccine development Cancer immunotherapy Autoimmune disease research Basic immunology studies Immune cell development

6. Conclusion

OMIP-025 integrates T cell functionality, memory differentiation, TFH phenotype, and NK cell responses into a single panel. Incorporating sensitive markers such as CD154 ensures reliable detection of low-frequency antigen-specific cells. This design maximizes data yield from limited samples, providing researchers with a comprehensive view of immune responses. OMIP-025 represents an efficient, reproducible solution for systematic immune profiling in vaccine development, infection immunology, and pediatric immunology research.

Get OMIP-025 Compatible Flow Cytometry Antibodies

abinScience provides validated flow cytometry antibodies covering key targets in this panel, supporting your Immunophenotypes of Immune Cell Subsets research

Browse Flow Cytometry Antibodies Contact Technical Support

References

[1] Moncunill G, Dobaño C, McElrath MJ, De Rosa SC. OMIP-025: evaluation of human T- and NK-cell responses including memory and follicular helper phenotype by intracellular cytokine staining. Cytometry A. 2015 Apr;87(4):289-92. doi: 10.1002/cyto.a.22590. Epub 2014 Nov 18. PMID: 25407958; PMCID: PMC4454451.
