Flow Cytometry Troubleshooting Guide (Part 6): Why Is Cytokine Detection Inconsistent? Don't Overlook the Critical Variables: Stimulation and Protein Transport Blockage

In intracellular cytokine staining (ICS) assays, researchers frequently encounter puzzling variability: using the same batch of samples, identical protocols, and the exact same flow cytometry panel, the detected IFN-γ positivity rate might reach 30% today but drop to 10% tomorrow. When such fluctuations occur, after ruling out technical factors like antibody performance, the integrity of the Fixation/Permeabilization system, or multicolor panel design, the root cause often traces back to the pre-staining steps: in vitro stimulation and protein transport inhibition.

Unlike surface markers such as CD3, CD4, or CD8, which are constitutively and stably expressed, cytokines are not fixed cellular components. Rather, they are functional, dynamic effector molecules synthesized and released within specific time windows following cellular activation. Consequently, the cytokine signal detected by flow cytometry does not represent the cumulative total of cytokines produced by a cell, but rather the fraction retained intracellularly and captured by antibodies at the precise moment the assay is stopped. In short, ICS assay results reflect a dynamic equilibrium: stimulation dictates how much cytokine is produced, while secretion inhibition determines how much cytokine is retained. A shift in either parameter can significantly skew the final readout.

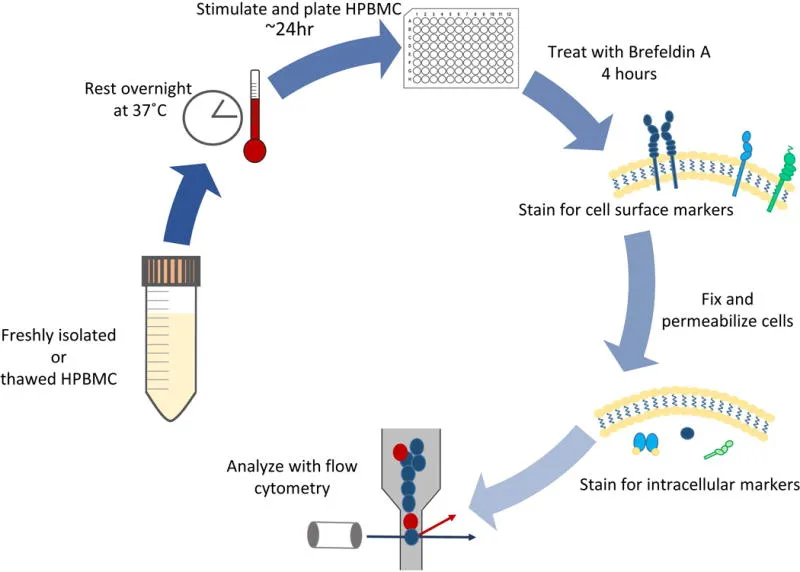

Figure 1. Workflow for intracellular cytokine detection in isolated human peripheral blood mononuclear cells (PBMCs) (DOI: 10.1002/cptx.26)

1. Why Is Cytokine Detection Highly Dependent on Stimulation and Blockage?

Under steady-state conditions, resting immune cells express low to undetectable baseline levels of cytokines; transcription and protein synthesis must be triggered by exogenous activating signals. Therefore, an ICS protocol must first include a stimulation step capable of inducing target cells to produce cytokines, establishing the baseline source and upper limit of the signal.

Once synthesized following stimulation, cytokines naturally transit through the Golgi apparatus and are secreted into the extracellular space. ICS assays rely on protein transport inhibitors to interrupt this pathway, temporarily trapping cytokines within the cell so they can be recognized by fluorochrome-conjugated antibodies. Stimulation defines the potential output, while inhibition ensures signal retention—together, they define the critical temporal window for ICS assay success.

Table 1. Common Stimulants and Protein Transport Inhibitors

2. Optimization of Stimulation Duration: Matching Expression Kinetics

Figure 2. Impact of stimulation duration on cytokine detection (Open squares: 1 μg/mL LPS + 2 μmol/L monensin; Solid squares: 1.4 μmol/L brefeldin A) (DOI: 10.1002/cyto.1102)

2.1 Under-Stimulation: Insufficient Cytokine Accumulation

Cytokine synthesis requires transcription, translation, and post-translational processing, introducing an inherent time lag. Following PHA or anti-CD3 stimulation, cytokine gene upregulation generally begins 1–4 hours post-activation, with mRNA levels peaking around 8 hours. If the stimulation duration is too short (e.g., 1–2 hours), most cytokines will not have accumulated to detectable levels. Even if cells are activated, the assay will yield false negatives or artificially low positive rates.

2.2 Over-Stimulation: Kinetic Mismatch, Signal Decay, and altered cellular state and compromised viability

Different cytokines follow distinct secretion kinetics and do not simply accumulate indefinitely over time. For instance, TNF-α is an early-response cytokine, peaking shortly after activation and declining thereafter. Conversely, cytokines like IFN-γ and IL-2 require longer incubation times to reach peak intracellular levels. Consequently, there is no universal "one-size-fits-all" stimulation duration; timing must be tailored to the target cytokine.

Prolonging stimulation also risks compromising cellular integrity. Culture periods exceeding 6 hours—and particularly extending up to 24 hours—can significantly decrease detectable cell subset frequencies and impair overall cell viability.

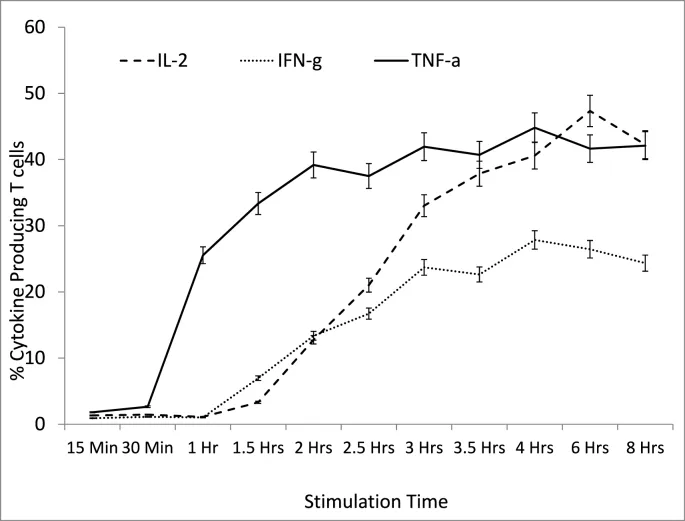

Figure 3. Percentage of T cells expressing IL-2, IFN-γ, and TNF-α at various time points after PMA and Ionomycin stimulation (DOI: 10.1016/j.crimmu.2021.10.002)

2.3 Non-Transferability of Timing Parameters Across Activation Models

PMA/Ionomycin acts as a potent, non-specific stimulus with rapid onset, inducing detectable levels of most pro-inflammatory cytokines (IFN-γ, TNF-α, IL-2) within 5–6 hours. In contrast, antigen-specific stimulation (e.g., peptide pools or whole-protein antigens) relies on cellular uptake, processing, and MHC presentation, leading to delayed kinetics. Antigen-driven assays typically require a pre-incubation step (approx. 2 hours) to establish antigen presentation and early activation signaling before adding transport inhibitors like BFA or Monensin. Directly applying kinetic parameters optimized for PMA/Ionomycin to antigen-specific systems is a common source of experimental failure.

Table 2. Recommended Stimulation and Detection Parameters for Key Cytokines

Note: Parameters serve as baseline starting points. Optimization via kinetic time-course experiments is strongly recommended for specific cell types and stimulation systems.

3. Inappropriate Secretion Blockage Leads to Direct Signal Loss

Protein transport inhibitors function by shutting down cellular export pathways. However, distinct mechanistic targets between inhibitors dictate their trapping efficiency for specific cytokines as well as their cytotoxicity. The two primary inhibitors used are Brefeldin A (BFA) and Monensin.

3.1 Mechanistic Differences: BFA vs. Monensin

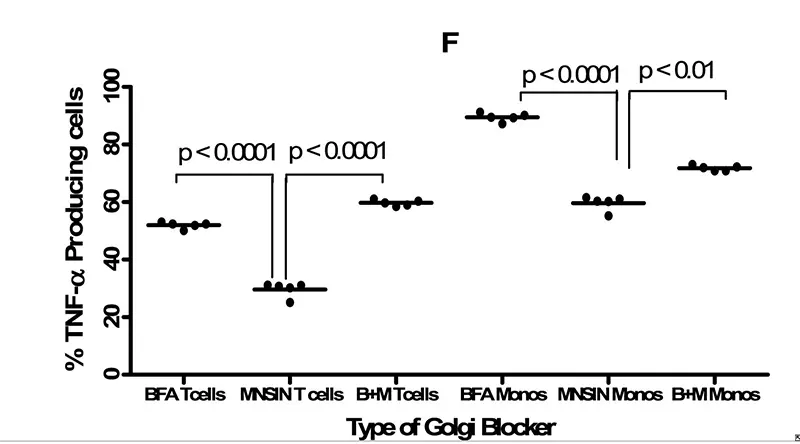

Figure 4. Effect of different transport inhibitors on the frequency of TNF-α-producing T cells and monocytes (DOI: 10.1016/j.crimmu.2021.10.002)

3.2 Impact of Inhibitor Addition Timing

The timing of inhibitor addition marks the onset of secretion blockage and works interdependently with total stimulation time.

Adding inhibitors too early can impair early activation signaling and antigen processing/presentation, particularly in full-protein stimulation assays. For such systems, a ~2-hour pre-incubation period without inhibitors allows presentation and co-stimulation to fully occur prior to BFA/Monensin addition.

Adding inhibitors too late allows synthesized cytokines to escape into the supernatant, leading to systematic underestimation of positive populations—an issue particularly acute for fast-secreting cytokines like TNF-α.

A widely accepted protocol involves stimulating cells for 1–2 hours (extending pre-incubation to ~2 hours for protein antigens), adding BFA (5–10 μg/mL), and continuing culture for an additional 4–6 hours to ensure a 2–4 hour accumulation window. This framework provides a solid baseline but should be validated for specific target cytokines and activation conditions.

4. Frequently Asked Questions & Troubleshooting

Q1: Is there a universal stimulation protocol applicable to all cytokines?

No. Secretion kinetics vary significantly across cytokines: TNF-α peaks at ~2 hours, IL-2 and IFN-γ peak at ~8 hours, and delayed cytokines like IL-10 or TNF-β may require up to 48 hours. Any time parameter is intrinsically tied to a specific stimulus-cytokine combination. We recommend using 5–6 hours as an initial reference point and performing a kinetic time-course experiment for new targets.

Q2: Does combining BFA and Monensin yield a synergistic effect?

Not necessarily; co-treatment should be empirically validated per cytokine rather than assumed beneficial. As shown in Figure 4, BFA alone yields higher sensitivity than a BFA + Monensin combination for TNF-α detection.

Q3: How should multi-color panels measuring cytokines with conflicting kinetics be designed?

This is a common trade-off in panel design. Standard strategies include prioritizing optimal windows for the primary 1–2 cytokines of interest while accepting sub-optimal signals for secondary targets. Alternatively, if kinetic profiles are highly divergent (e.g., TNF-α vs. IL-10), split the assay into separate stimulation conditions.

Q4: Is re-validation required when changing reagent lots?

Yes, re-validation is strongly recommended, especially for stimulants (e.g., PMA/Ionomycin, peptide pools). Lot-to-lot potency variations can shift the optimal kinetic window or lead to sub-optimal stimulation. While a full kinetic course is not required for every batch change, running a parallel positive control to confirm consistency against historical baselines is best practice.

Summary

Assay instability in ICS flow cytometry rarely stems from a single experimental factor; more often, it results from failing to align experimental workflows with biological expression kinetics. Unlike stable surface markers, intracellular cytokine detection depends on a tightly synchronized temporal window between induction, accumulation, and detection.

Consequently, stimulation and secretion blockage should not be treated as independent variables, but as co-dependent parameters that dictate overall signal strength. Tailoring these parameters to the target cytokine, activation model, and experimental goal is essential for achieving reliable, reproducible data.

Understanding when cytokines are produced, when they are released, and how they are trapped is far more critical than merely fine-tuning antibody titration or staining protocols. When troubleshooting ICS assay fluctuations, re-evaluating stimulation and inhibition parameters will almost always uncover the solution.
